Product introduction
Industrial V Shape Type Powder Tumbler Mixer Blender 500L With Agitator
This machine is mainly composed of mixing cylinder, frame, transmission system, electrical system and other parts, it is the use of two asymmetrical cylinder, gravity mixing, materials in the cylinder continuous gathering, continuous dispersion, generally after about 15 minutes of mixing, so that two or more than two kinds of powder, granular materials fully mixed evenly, especially suitable for two or more than two kinds of material gravity, Mixed with a large disparity, the mixing uniformity reaches more than 99%.
Function description: V-type mixer can be used for the uniform mixing of dry powder or granular materials with good fluidity, suitable for medicine, food, feed, fertilizer, fuel, ore and other industries.
Medicine: Capsule granule, Chinese flavoring, powder or granule Chinese herbal mixture, etc.
Feed: Can be used for all kinds of fish feed, poultry feed, wild animal feed, bird feed and other kinds of feed mix.
Food: such as condiments, additives, vitamins, all kinds of sugar products, etc.
Fuel: A mixture of all kinds of firecrackers, fireworks, etc.
Ore: Can be mixed on a variety of powder or granular ore.
Technical parameters
We produce different specifications of mixers, if you want to customize your machine, please contact us.
| Model | Total volume(L) | Effective volume(L) | Capacity (kg/t) | Outlet size(mm) | Rotary height(mm) | Cylinder speed(r/min) | Weight(kg) |
| VH-5 | 5 | 2 | 2 | Ф100 | 700 | 12 | 50 |
| VH-50 | 50 | 20 | 12 | Ф100 | 1350 | 12 | 110 |
| VH-100 | 400 | 40 | 25 | Ф100 | 1600 | 12 | 180 |
| VH-200 | 200 | 80 | 50 | Ф100 | 1700 | 12 | 270 |
| VH-300 | 300 | 120 | 75 | Ф100 | 1850 | 12 | 350 |
| VH-400 | 400 | 160 | 100 | Ф100 | 2100 | 8-10 | 500 |
| VH-500 | 500 | 200 | 120 | Ф150 | 2250 | 8-10 | 600 |
| VH-800 | 800 | 320 | 200 | Ф150 | 2300 | 8-10 | 850 |
| VH-1000 | 1000 | 400 | 250 | Ф150 | 2700 | 8-10 | 1200 |
| VH-1500 | 1500 | 600 | 400 | Ф200 | 2900 | 8-10 | 1400 |
| VH-2000 | 2000 | 800 | 500 | Ф200 | 3200 | 7 | 1700 |
| VH-3000 | 3000 | 1200 | 800 | Ф200 | 3500 | 6 | 2100 |
Feature
1. Compact structure and simple operation.
2. Can adapt to the mixing of various materials, and the uniform rate of 98%.
3. Adjustable speed, timing device and design of forced mixing can effectively ensure the uniform mixing of materials.
4. The inner and outer walls of the mixing cylinder are processed by precision polishing, with smooth, flat surface, no dead Angle and easy to clean.
5. No jitter, no noise in the process of transmission system, easy maintenance, electrical control is accurate and sensitive.
6. This machine has unique design, beautiful appearance and wide use. It is an ideal equipment for mixing materials.

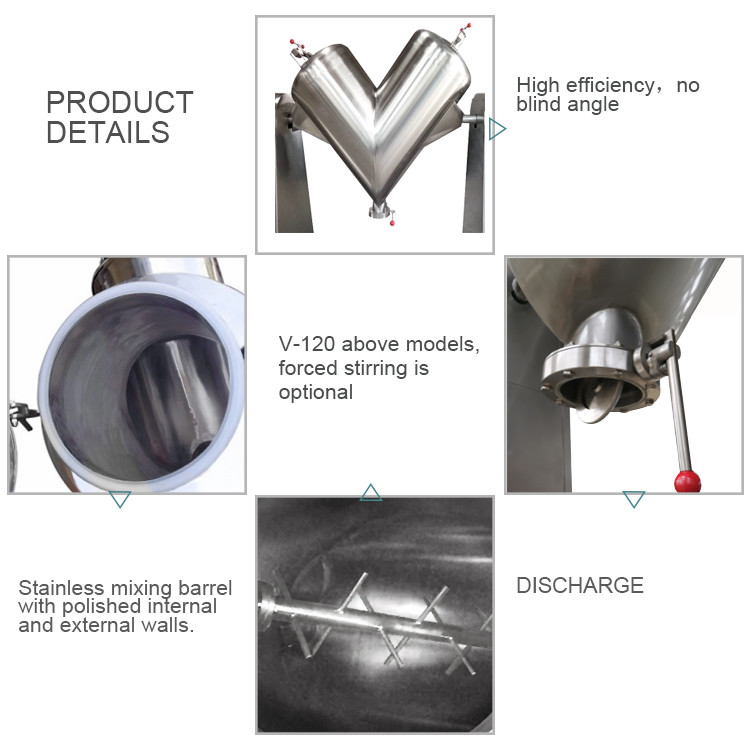

Product details

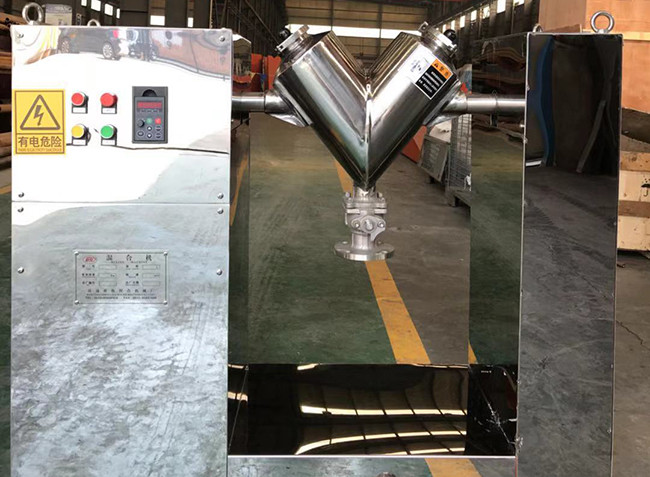

One end of the machine is equipped with a motor and a reducer, the motor power through the belt to the reducer, reducer through the coupling to the V-barrel. Make the V-shaped barrel work in succession, driving the material in the barrel up, down, left and right to mix.
