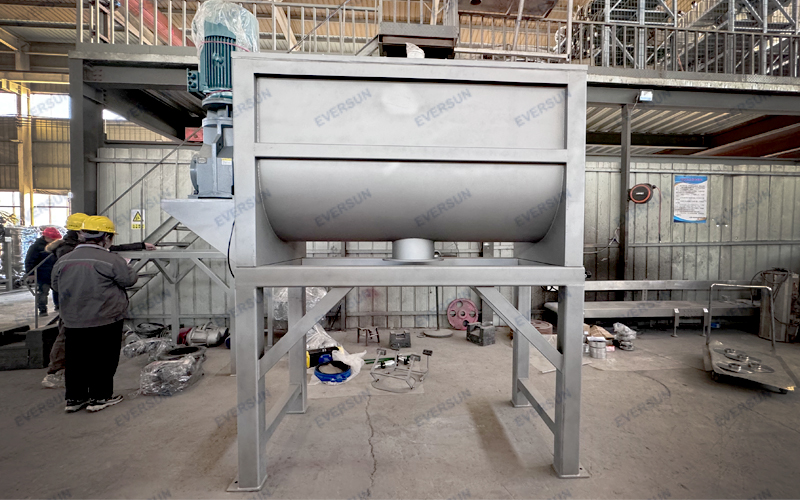

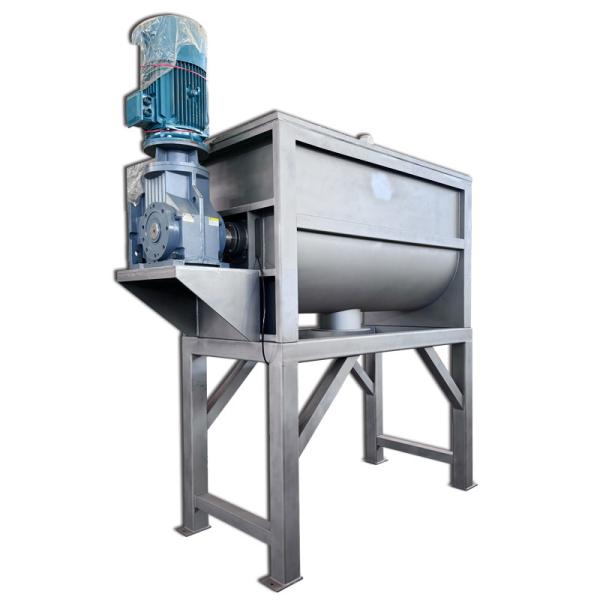

The horizontal screw mixer is an advanced mixing device widely used in various industries
such as chemical and food. It adopts advanced screw stirring technology, which quickly
and evenly mix various materials, ensuring the quality and efficiency of the production
process. Compared to traditional mixing equipment, the horizontal screw mixer has better
mixing effect, applicability, easy operation, convenient maintenance, and durable reliability.
The working principle of the screw ribbon mixer is that various components of the material
are fed into the mixer according to the calculated proportions based on recipe. The
material is mixed under the push of the ribbon-shaped spiral blades. The outer screw
ribbon pushes the material from one end to the other, while the screw ribbon moves the
material in the opposite direction. The inner layer of material is pushed to one side and
then flips from inside out, while the outer layer of is pushed to the other side and then flips
from outside in. During the convection process, the two streams of material interpenetrate
and mix with each, and then mix again during the flipping process on both sides.
This process is repeated multiple times, and finally, the well-mixed material is discharged
from the door through the material control mechanism.
1. Wide application range, can be used for powder mixing, powder-liquid mixing, and
liquid-liquid mixing.
2. uniformity of mixing: It can uniformly mix materials with a ratio of 1:10000, especially
advantageous for mixing materials with large density differences.
3. Fast mixing speed and high efficiency. It is 6-10 times or more efficient than other mixers.
4. Fast and convenient discharge, finishing a batch within 2-5 minutes.
5. Gentle mixing process, basically maintaining the original state of the materials.
6. Minimal pollution to the materials with an integrated stirring mechanism, safe and reliable,
all corners and welds are smoothly transitioned, easy to clean; lubrication parts are all
outside the bucket no oil or grinding debris will mix into the materials, allowing sealed
operation and preventing dust from entering the materials.
7. Low energy consumption and high loading coefficient.
8. Low factory requirements, the equipment is horizontal, and various forms of drive devices
and discharge positions can be freely chosen, not constrained by factory height or area.
9. Stable and reliable operation of the equipment, few consumable parts, long service life,
easy maintenance and simple operation.
| Model | Volume(L) | Motor power (kw) | Spindle speed(r/min) | Primary mixing (kg) M ³ | L*W*H(mm) | Weight (kg) |
| WLDH-0.3 | 300 | 3 | 41 | 240 | 2300*680*1060 | 750 |
| WLDH-0.5 | 500 | 5.5 | 41 | 400 | 2900*780*1240 | 1000 |
| WLDH-1 | 1000 | 11 | 33 | 800 | 3200*1000*1400 | 1800 |
| WLDH-2 | 2000 | 15 | 33 | 1600 | 3860*1200*1650 | 2200 |
| WLDH-3 | 3000 | 18.5 | 33 | 2400 | 4320*1300*1900 | 3200 |
| WLDH-4 | 4000 | 22 | 28 | 3200 | 4600*1400*2000 | 4000 |
| WLDH-5 | 5000 | 37 | 28 | 4000 | 4850*1500*2020 | 4650 |
| WLDH-6 | 6000 | 37 | 22 | 4800 | 5400*1560*2200 | 6280 |
| WLDH-8 | 8000 | 45 | 22 | 6400 | 5100*1720*2420 | 8500 |
| WLDH-10 | 10000 | 55 | 19 | 8000 | 5610*1750*2360 | 9300 |
| WLDH-15 | 15000 | 90 | 17 | 12000 | 5820*2000*3160 | 11000 |
| WLDH-20 | 20000 | 110 | 11 | 16000 | 6060*2630*3160 | 13500 |
Mixing with a screw ribbon mixer not only takes a short time but also has good mixing
results, and it is a highly practical mixing device. is usually used for mixing powders with
powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide,
dye, chemical and plastic industries.
