Vacuum Conveyor

Product description

The vacuum feeder is a widely used material conveying equipment in industrial production. It generates negative pressure through a vacuum pump and uses suction to draw materials the feed port, safely and efficiently transporting them through the conveying pipeline to the designated position, achieving rapid material transfer. Its structure covers key parts such as the vacuum pump suction nozzle, conveying pipeline, material warehouse, and control system, and it has outstanding advantages such as fast conveying speed, high efficiency, no dust leakage, simple operation and easy automation control. It plays an important role in chemical, pharmaceutical, food and other industries, significantly improving production efficiency and improving the working environment.

Working principle

When the vacuum feeder is working, the vacuum pump is started first, and the vacuum pump quickly draws away the air in the hopper, a negative pressure environment inside the hopper. Under the action of atmospheric pressure, the material is pressed into the suction pipe from the suction port, and then conveyed to hopper along the conveying pipeline. When the material in the hopper reaches the predetermined high material level, the material level sensor sends a signal, the vacuum pump stops, and the feeding process is paused; when the material in the hopper drops to the low material level, the material level sensor acts again, the vacuum pump is, and a new round of material conveying work begins. In this way, the automatic conveying of materials is realized.

Product features

1. Efficient conveying: Relying on the negative pressure suction generated by the vacuum pump, materials can be quickly sucked from the port and conveyed to the material warehouse, greatly shortening the material conveying time, meeting the efficient feeding needs of large-scale production, and improving the overall production efficiency.

2. Clean and environmentally friendly: The fully enclosed conveying process avoids contact between materials and the external environment, eliminating dust leakage, reducing pollution to the working environment, and also materials from being contaminated by external impurities, ensuring material quality.

3. Simple operation: Equipped with a perfect control system, it can achieve automatic feeding with simple parameter settings, without the need for frequent manual intervention, reducing the labor intensity of operators and the skill requirements for operators are relatively low.

4. Easy maintenance: The is relatively simple, and the main components such as the vacuum pump and level sensor are easy to disassemble and replace, making daily maintenance and maintenance work more convenient, reducing equipment maintenance costs and downtime, and ensuring the continuity of production.

5. Wide range of applications: It can convey materials of various different forms and properties, such powdery, granular, etc., whether it is chemical raw materials, pharmaceutical powders, or food particles, it can achieve stable conveying, suitable for the links of many industries.

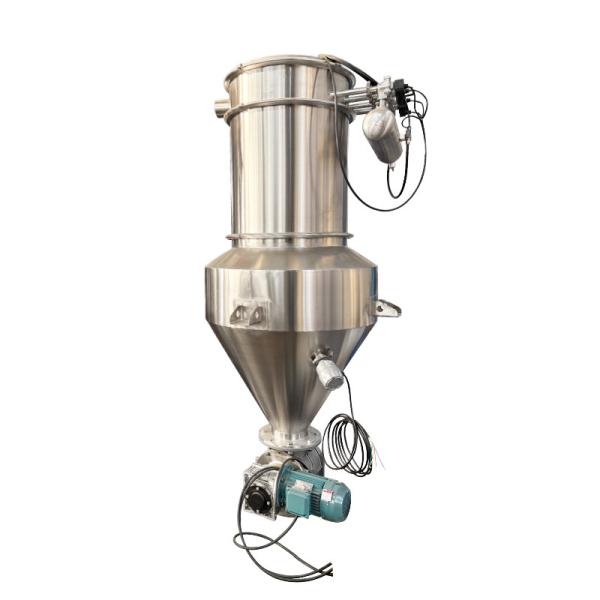

Stainless steel vacuum conveying equipment; Metal powder particle feeder Images
