Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting

Brand Name : EVERSUN

Model Number : ZPS

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1set

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union

Supply Ability : 5000set/year

Delivery Time : within 7-15 work days

Packaging Details : Standard export wooden cases

Function : Screening\separation\sorting\sieving

Keyword : Industrial Sieve

Key Words : Vibrating Screen

Maintenance : Easy and Low Cost

Material : Stainless Steel

Screening Size Range : From 1mm to 100mm

Warranty : 1 year

Mesh Size : 2-500mesh

Diameter : 400-2000mm

Screening Motion : Circular, elliptical, or linear

Installation Method : Floor-mounted or suspended

Contact Now

Industrial screening machine

Product description
The in-line screen is an efficient screening equipment, which rotates the eccentric block on the shaft of the vibration motor, converts the motor rotation into multi-directional force by centrifugal force, and drives the screen body to make the material move in an elliptical trajectory. It has a large processing capacity and a large discharge port at the bottom to allow materials to pass through the net quickly; Good applicability, single and double motor, adjustable track, can be used single or multi-layer; Energy saving and environmental protection, low energy consumption and good sealing; Easy maintenance, compact structure, external motor, easy to change the screen clean. Widely used in food, chemical, pharmaceutical, mining, building materials and other industries, screening all kinds of materials, improve product quality and production efficiency.

Working principle
When the screen is working, the vibration motor starts to run as the core power component. The eccentric block installed on the shaft rotates at a high speed. Because the center of gravity of the eccentric block deviates from the center of the rotating shaft, centrifugal force will be generated during the rotation process. This centrifugal force will break the balance of the motor, and then drive the motor to vibrate. The motor is closely connected with the screen body, and the vibration of the motor is transmitted to the screen body, so that the screen body also begins to high-frequency vibration. At this time, the material placed on the screen surface, on the one hand by the sieve body vibration generated by the exciting force, jumping forward on the screen surface; On the other hand, the gravity of the material itself will cause it to have a tendency to move down the screen surface. Under the combined action of these two forces, the material smaller than the size of the screen can pass through the screen and fall, while the material larger than the size of the screen remains on the screen surface and continues to move forward until it is discharged from the discharge port, so as to achieve the screening of the material.

Product Features
High screening efficiency: the unique vibration mode makes the movement of the material on the screen surface reasonable, can be quickly stratified and sifted through, the large discharge port design also helps the material to be quickly discharged, greatly improving the screening efficiency and large processing capacity.



High precision: By adjusting the parameters of the vibration motor, such as the Angle and weight of the eccentric block, the motion state of the material can be accurately controlled to meet the screening requirements of different precision, and the accurate classification of the material can be achieved.



Simple structure: mainly composed of screen frame, screen, vibration motor and base and other basic components, the overall structure is simple, there is no complex transmission device, easy installation, operation and maintenance, equipment stability is good, low failure rate.



Wide range of applications: whether it is fine powder materials, or large particles of block materials, or different properties of materials, such as dry, wet materials, etc., straight screen can be effective screening, in food, chemical, pharmaceutical, mining, building materials and other industries are widely used.



Environmental protection and energy saving: low energy consumption in the operation process, and the use of sealed design, can effectively prevent dust and material leakage, reduce environmental pollution, in line with environmental requirements.



Easy to clean: the design of the screen body is easy to clean, there is no dead Angle of material residue, and the screen replacement is convenient, which can quickly complete the disassembly and installation of the screen, reducing the maintenance cost and downtime of the equipment.


Product parameter

Model Power(kw) Sieving diameter(mm) Dimension(mm)
BZP-600 0.12 520 740*600*560
BZP-800 0.18 720 1010*800*600
BZP-1000 0.18 890 1200*970*640
BZP-1200 0.25 1090 1430*1700*700
BZP-1500 0.25 1390 1780*1470*760
Machine can be customized based on your need

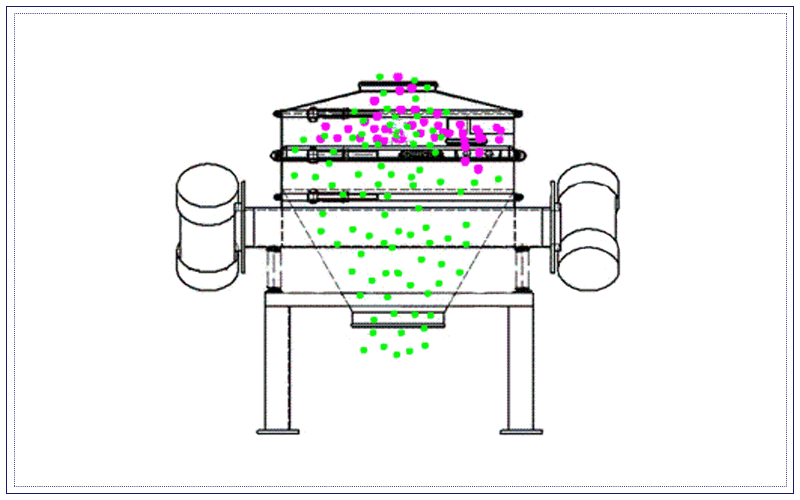

Schematic diagram
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting

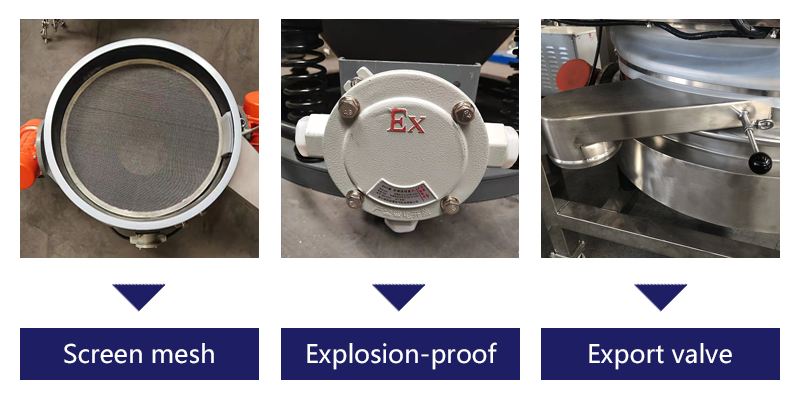

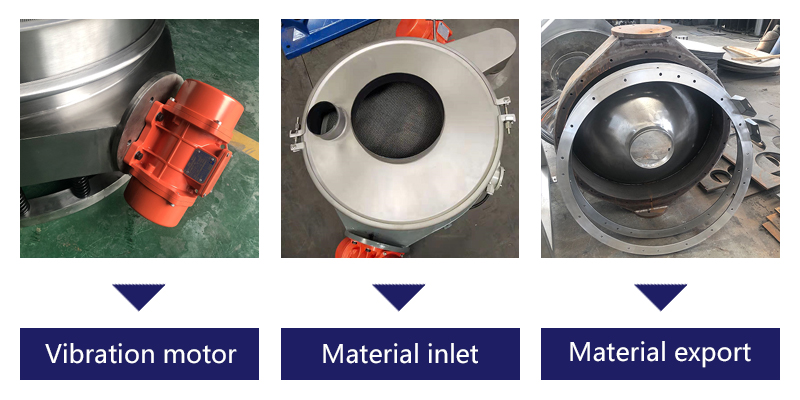

Detail display
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting

Application
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting

Packaging & Shipping
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting

Why Choose us
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting
Precise Vibratory Screening Machine for Rough and Precision Screening in Industrial Setting
About us



We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM
for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you.Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
